 安捷倫 E5061B ENA 網絡分析儀

 名稱:網絡分析測試儀

 品牌:

 型號:

 簡介:Agilent E5061B ENA 網絡分析儀option plus 005 impedance analysis option - NA plus ZA in one box Agilent E5061B ENA 網絡分析儀provi...
Agilent E5061B ENA 網絡分析儀RF-NA option
 • 100 kHz to 1.5 GHz / 3 GHz
• Transmission / Reflection test set and S-parameter test set
• 50 Ω and 75 Ω system impedance
LF-RF NA option
 • 5 Hz to 3 GHz
• 50 Ω S-parameter test set
• Gain-phase test port (1 MΩ / 50 Ω inputs)
• DC-bias source
• Impedance analysis function (option 005)

Agilent E5061B ENA 網絡分析儀 responds to various measurement needs, from LF to RF
 The Agilent E5061B is a member of the ENA Series network analyzers. The E5061B addresses a broad range of measurement needs of electronic components and circuits from low to high frequencies. The E5061B now provides a new standard of frequency-domain device analysis from 5 Hz to 3 GHz.
Related links:
 • E5061B Brochure
• E5061B-3L5/005 Data Sheet
Agilent E5061B ENA 網絡分析儀RF NA Options: E5061B-115/117/135/137/215/217/235/237
 Solid performance in an enhanced platform

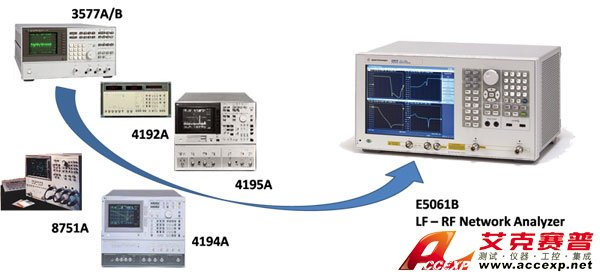

 The E5061B RF Network Analyzer options are the successors of the E5061/62A and they provide high-performance network analysis for testing RF components, including cellular BTS filters/antennas, MRI coils, RFIDs, and CATV components. A wide variety of test set options allows you to select the best configuration to suit your test requirements and budget.
LF-RF NA Option: E5061B-3L5
 Comprehensive LF-to-RF network analysis

 The E5061B-3L5 LF-RF NA option offers versatile network analysis in the broad frequency range from 5 Hz to 3 GHz. Comprehensive LF network measurement capabilities including built-in 1 MΩ inputs have been seamlessly integrated with the high-performance RF network analyzer. The E5061B-3L5 is the right solution for component and circuit evaluations in the R&D environment.
Agilent E5061B ENA 網絡分析儀option plus 005 impedance analysis option - NA plus ZA in one box
 The E5061B-005 provides the impedance analysis (ZA) firmware for the E5061B-3L5 LF-RF network analyzer. This option enables the analyzer to measure impedance parameters of electronic components such as capacitors, inductors, and resonators. The combination of NA and ZA capabilities further enhances the analyzer’s versatility as a general R&D tool.
Test Set Options
 50Ω RF NA Options:
Option 115 Transmission / Reflection test set, 100 kHz to 1.5 GHz
Option 135 Transmission / Reflection test set, 100 KHz to 3 GHz
Option 215 S-parameter test set, 100 kHz to 1.5 GHz
Option 235 S-parameter test set, 100 kHz to 3 GHz
75Ω RF NA Options:
Option 117 Transmission / Reflection test set, 100 kHZ to 1.5 GHz
Option 137 Transmisson / Reflection test set, 100 kHz to 3 GHz
Option 217 S-parameter test set, 100 kHz to 1.5 GHz
Option 237 S-parameter test set, 100 kHz to 3 GHz
LF RF NA Option
Option 3L5 5 Hz to 3 GHz
Agilent E5061B ENA 網絡測試分析儀NOTE: The option number of the E5061B's standard hard disk drive has been changed from 019 to 020 as of November 1, 2010.
